Speed Differences Graph

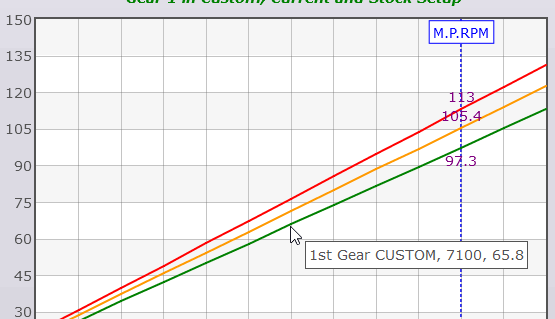

Because in the previous Speed graph, the speeds are shown for all gears per setup in 1 graph, it is hard to compare them. On this page there are 6 graphs, one for each gear in which the speed for 3 setups is shown. So when you load this graph for a bike loaded with default database setting (so same values in all 3 setups except for final drive of current setup (stock front -1) and custom (stock rear +3), it shows 3 lines like this"


If you want to display another RPM range, change the MPRPM in Custom setup and also the Minimum RPM to display in table "Speed in Km/h (Mph) related to Gear and RPM ....". This way you can zoom in on the RPM range you are interested in.

By hovering the cursor over the intersection of vertical RPM grid lines and the colored speed lines, the corresponding RPM and Speed is shown for that gear.

You can print the graph by clicking the 'Print 7 Graphs'-button. All graphs will be printed on separate pages. If you have a 'Print to PDF'-printer installed, you can print to that and save the graphs as PDF-files.
