Effects on Chain Geometry: Calculate sprocket distance based on total chain (or belt) length and sprocket combination

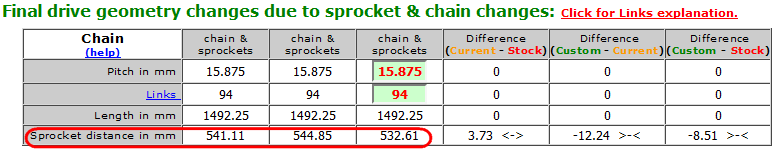

Based on this calculated chain (or belt) length and the entered values for the sprockets, the needed distance between the sprockets can be calculated for all 3 setups. The absolute numbers in the sprocket distance are not very meaningful but are used to calculate the differences in sprocket distance between the setups. This information indicates how far you have to move your rear wheel forward or backwards to accommodate the setup. So keep reading the next Help file.





Next: Calculate rear wheel adjustment needed for all 3 setups (i.e. sprocket combinations)
